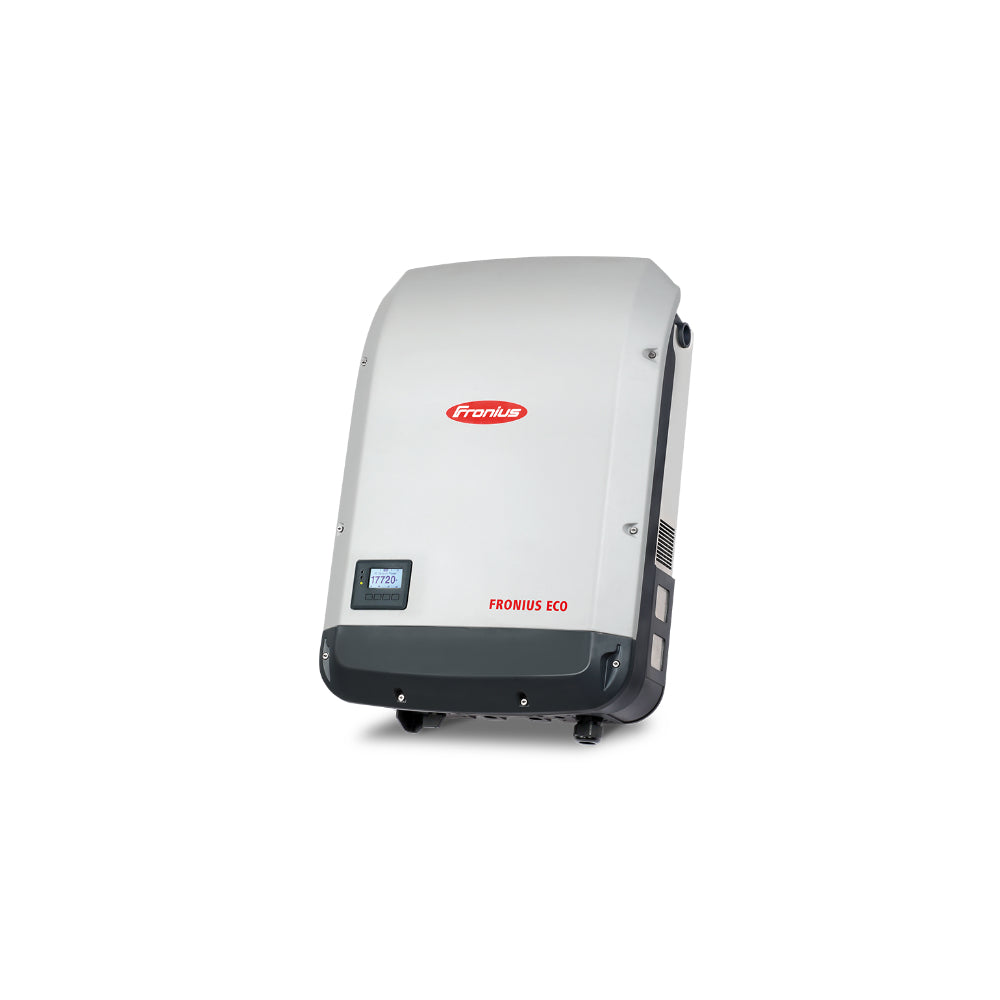

Fronius ECO 3-phase inverter WiFi WEB


Price
€2.068,45 exkl. USt.
SKU: 4,210,056,040
Taxes and shipping calculated at checkout
×
Preise zzgl. Versandkosten
Questions to the product?
Available for pre-order
Delivery time: 7-10 working days
model: ECO 25.0-3-S WLAN WEB
Product description

Fronius ECO 3-phase inverter WiFi WEB


The Fronius ECO 3-phase inverter Wlan WEB is a powerful solution for converting solar energy into usable electricity. With its innovative design and intelligent functions, it enables efficient use of solar energy while providing a reliable connection to the network.

 Product features:
Efficient energy conversion: The Fronius ECO 3-phase inverter Wlan WEB converts the direct current generated by the solar modules into usable alternating current, which can either be used in the home or fed into the grid. 3-phase version: The inverter is optimized for connection to 3-phase power grids and ensures an even distribution of the generated electricity. WLAN connectivity: The integrated WLAN interface allows you to conveniently and wirelessly integrate the inverter into your network and monitor it. Reliable monitoring: With the Fronius Solar.web monitoring system, you have access to the performance data of your PV system at any time and from anywhere.

Technical data:
Model: Fronius ECO 3-phase inverter Wlan WEB Power range: Available depending on model and version Connection type: 3-phase connection WLAN connectivity: Integrated WLAN interface Monitoring: Compatible with Fronius Solar.web monitoring

Areas of application:
The Fronius ECO 3-phase inverter Wlan WEB is ideal for use in PV systems of various sizes. It can be used in both self-consumption systems and systems that feed into the grid and ensures optimal use of the solar energy generated. Thanks to its WLAN connectivity and the Fronius Solar.web monitoring system, you always have full control over the performance of your PV system.

Fronius ECO 3-phase inverter WiFi WEB

Fronius ECO 3-phase inverter WiFi WEB

ECO 25.0-3-S WLAN WEB

Price
€2.068,45 exkl. USt.
ECO 25.0-3-S WLAN WEB

Technical specifications

data sheet

Technical data - Fronius ECO 3-phase inverter Wlan WEB

Size: 725x510x225mm
Weight: 35.7kg
Number of MPP trackers: 1
Usable MPP voltage range: 580V - 850V
Number of DC connections (MPPT1 / MPPT2):: 6
Max. PV generator power: 37.8 kWp
AC rated power: 25,000 - 27,000W
Max. output power: -25000 - 27000VA
Max. AC output current: 37.9/36.2 - 40.9/39.1A
Backup power: 3~NPE 380 v / 220 v or 3~NPE 400 v / 230 v (+ 20 % / - 30%)
Nom. Output Power PV Point: 25,000 - 27,000 VA
Nom. Output Power PV Point: Standard warranty of 10 years
