Fronius ECO 3-phase light inverter


Price
€1.948,62 exkl. USt.
SKU: 4,210,056,041
Taxes and shipping calculated at checkout
×
Preise zzgl. Versandkosten
Questions to the product?
Available for pre-order
Delivery time: 7-10 working days
model: ECO 25.0-3-S Light
Product description

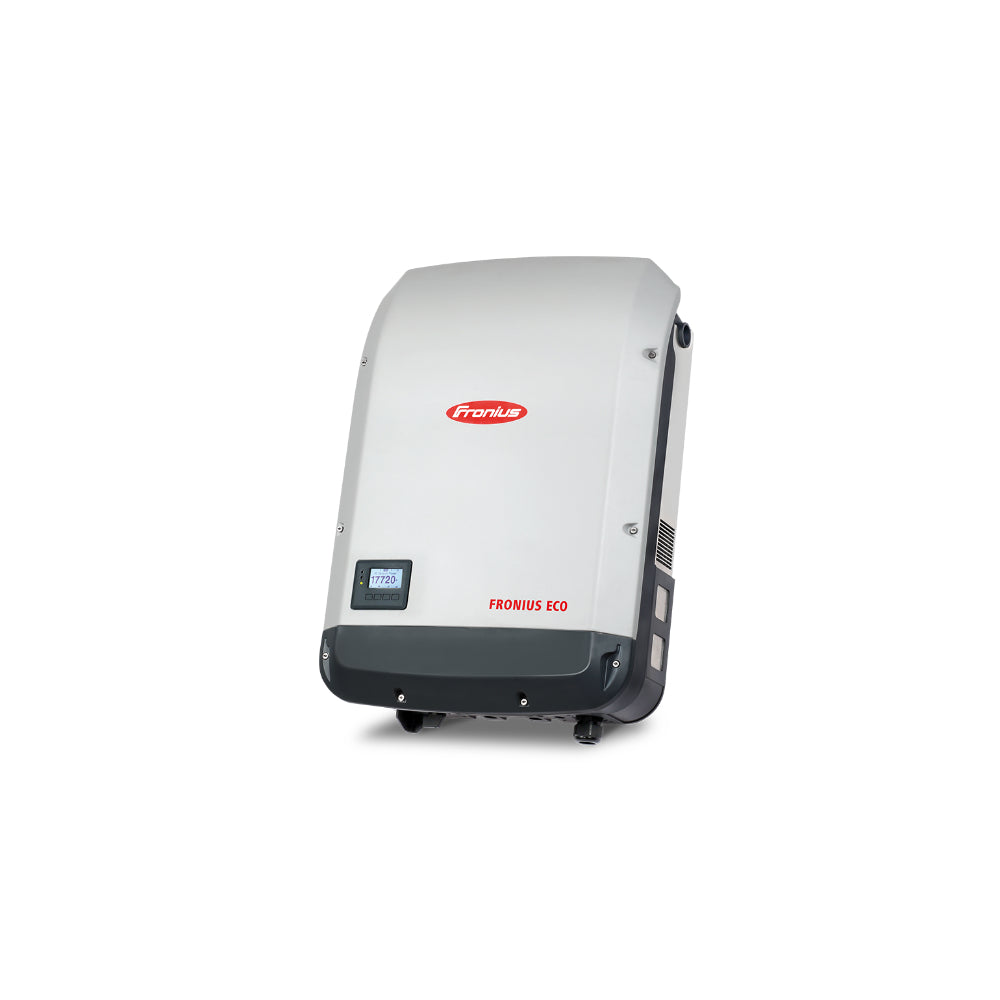

Fronius ECO 3-phase inverter Light


The Fronius ECO 3-phase inverter Light is a powerful and reliable solution for converting solar energy into usable electricity. With its innovative technology and intelligent functions, it is ideal for operating photovoltaic systems efficiently and making optimal use of the energy generated.

Product features:
Efficient conversion: The Fronius ECO 3-phase inverter Light offers efficient conversion of the direct current generated by the solar modules into alternating current for self-consumption or feeding into the grid. 3-phase version: The inverter enables connection to 3-phase power grids and ensures even distribution of the generated electricity. Intelligent monitoring: With the integrated Fronius Solar.web monitoring, you can monitor the operation of your PV system at any time and control it from anywhere. Lightweight design: The compact and lightweight design of the inverter enables easy installation and assembly.

Technical data:
Model: Fronius ECO 3-phase inverter Light Power range: Available depending on model and version Connection type: 3-phase connection Monitoring: Integrated Fronius Solar.web monitoring

 Areas of application:
The Fronius ECO 3-phase inverter Light is ideal for use in photovoltaic systems of different sizes. It can be used for both self-consumption systems and systems that feed into the grid and enables efficient use of the solar energy generated. The 3-phase design makes the inverter particularly suitable for 3-phase power grids.

Fronius ECO 3-phase light inverter

Fronius ECO 3-phase light inverter

ECO 25.0-3-S Light

Price
€1.948,62 exkl. USt.
ECO 25.0-3-S Light

Technical specifications

data sheet

Technical data - Fronius ECO 3-phase inverter Light

Size: 725x510x225mm
Weight: 35.7kg
Number of MPP trackers: 1
Usable MPP voltage range: 580V - 850V
Number of DC connections (MPPT1 / MPPT2):: 6
Max. PV generator power: 37.8 kWp
AC rated power: 25,000 - 27,000W
Max. output power: -25000 - 27000VA
Max. AC output current: 37.9/36.2 - 40.9/39.1A
Backup power: 3~NPE 380 v / 220 v or 3~NPE 400 v / 230 v (+ 20 % / - 30%)
Nom. Output Power PV Point: 25,000 - 27,000 VA
Nom. Output Power PV Point: Standard warranty of 10 years
